Overview

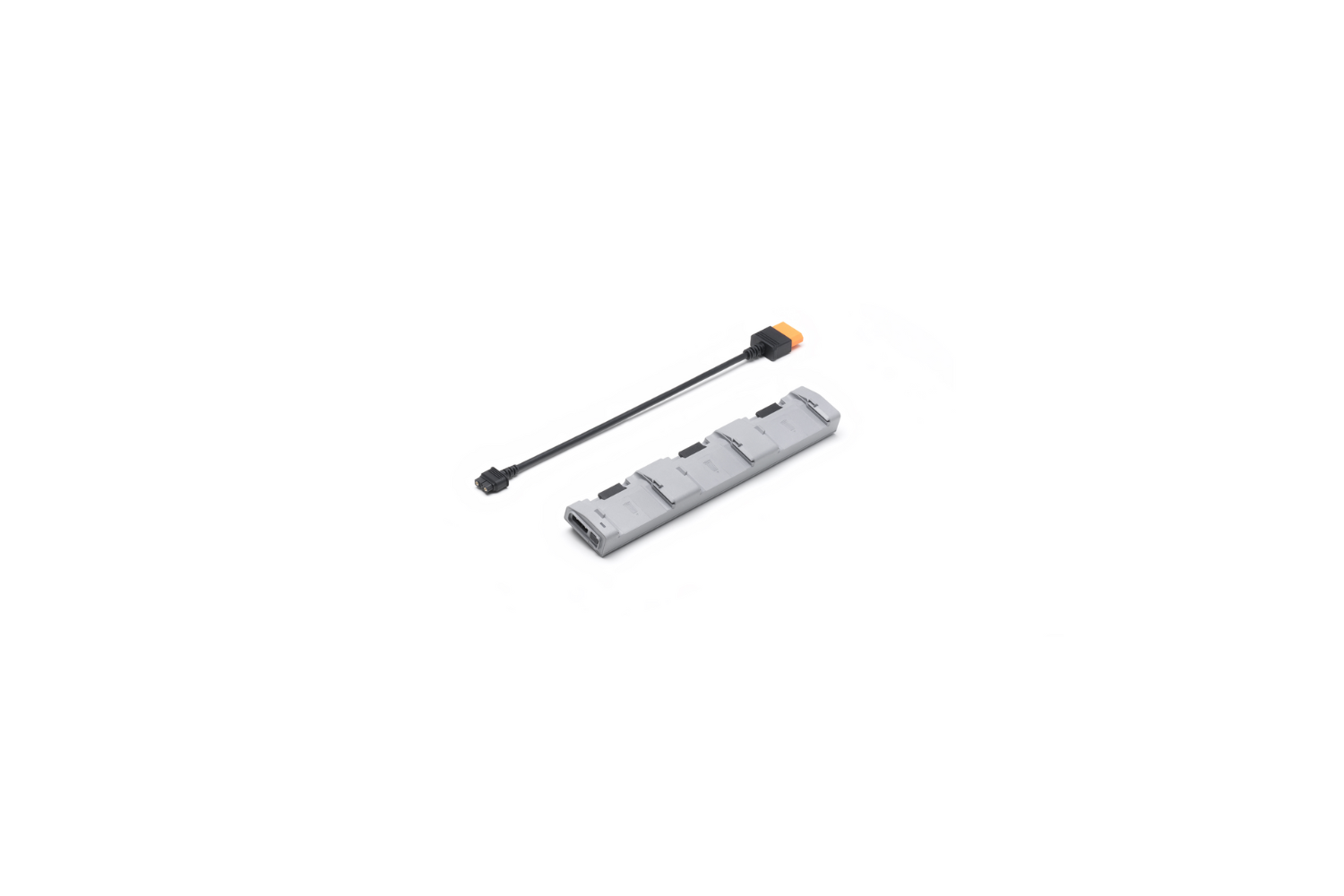

The DJI Matrice 4D Series 240W Charging Hub is a smart charging solution that works with the DJI 240W USB-C Power Adapter to efficiently power up to three Matrice 4D Series Intelligent Flight Batteries. It intelligently selects the battery with the highest remaining charge for optimized charging order and supports both Standard Mode and Ready-to-Fly Mode for mission-specific needs.

Highlights

• Sequential charging for up to three batteries.

• Standard Mode: Charges each battery to 100%.

• Ready-to-Fly Mode: Charges each battery to 90% and maintains readiness.

• Smart battery selection prioritizes the fastest-to-charge battery.

• Built-in safeguards for safe and efficient charging operations.

Tips

• Use only with the DJI 240W USB-C Power Adapter (sold separately).

• Compatible only with the BPX230-6768-22.14 Intelligent Flight Battery.

• Do not use with other battery models.

• Always place the hub on a flat, insulated, and stable surface.

• Avoid touching battery port terminals. Clean terminals with a dry cloth if buildup occurs.

• Ideal for teams needing quick battery turnaround in industrial or emergency deployments.

In the Box

• Matrice 4D Series 240W Charging Hub × 1

Specifications

• Input: SDC 16.8 V – 25.5 V, 12.1 A

• Rated Power: 240 W

• Charging Type: Sequential (1 battery at a time)

• Charging Modes:

  • Standard Mode: Full charge (100%)

  • Ready-to-Fly Mode: Partial charge (90%) and maintains

• Charging Temperature: 5 °C – 40 °C (41 °F – 104 °F)

Compatibility

• DJI Matrice 4D Series Flight Battery
